Schnieder Easy 9 6 Amp 30 MA Type B RCBO
for use in Easy 9 Consumer Unit
1PNs-B6-30mA
Replaces the Domae DOM06B6R30

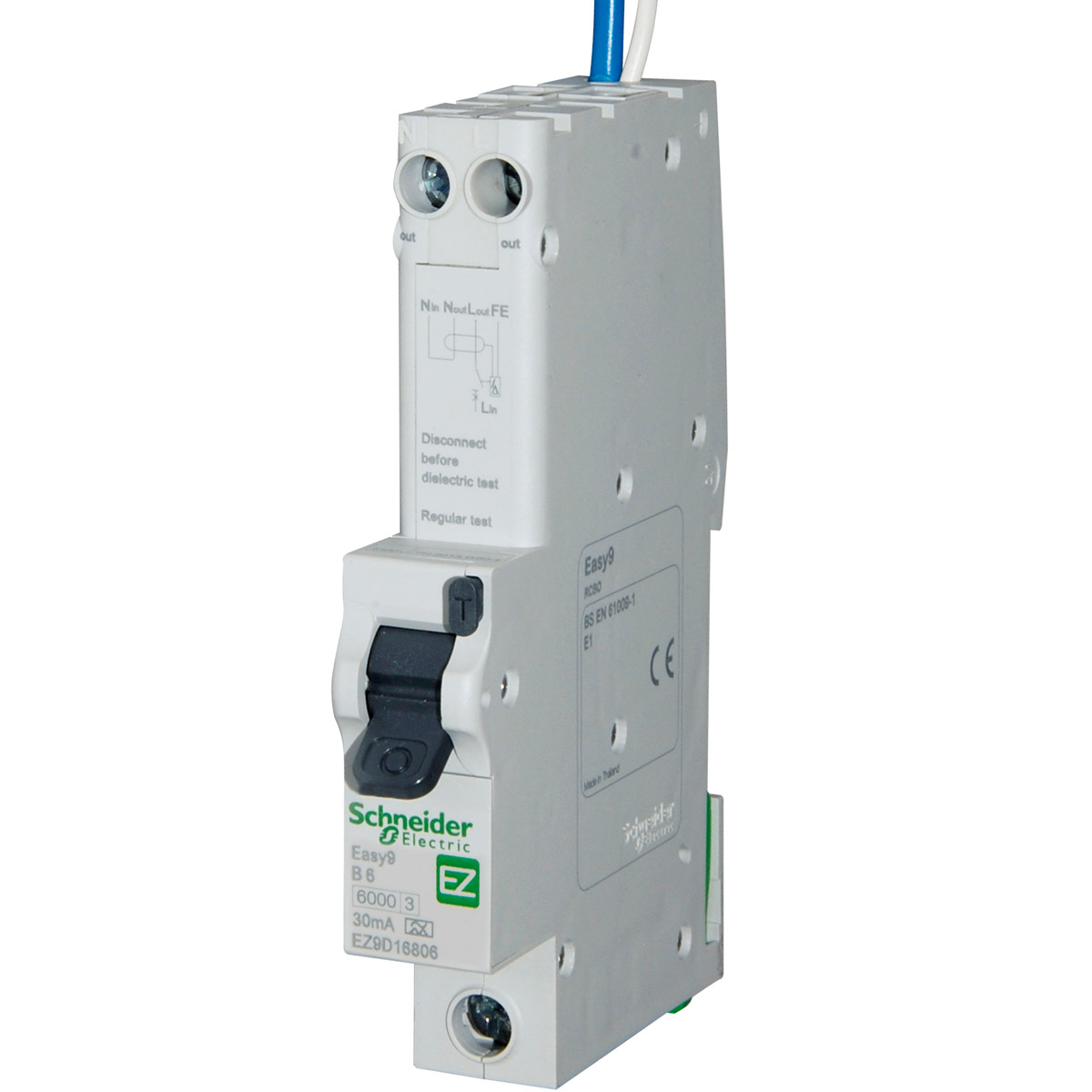

SCHNEIDER ELECTRIC EZ9D16806 - 6A 30mA SP RCBO
FUNCTIONS:-
Protection from short circuits
Protection of cable from overloads
Protection of persons from electric shocks by direct contact (30mA sensitivity)
Can be fitted instead of a miniature circuit breaker (mcb) for complete protection of one circuit.
The Earth Reference Cable "FE": enables RCD to protect users from electric shocks, even in case of supply neutral loss, neutral conductor breakage or supply voltage drop (FE=Functional Earth)
Voltage Rating (Ue): 230 VAC, 50Hz
Width in 9-mm modules: 2
B Curve
Certified compliant BS EN 61009-1
