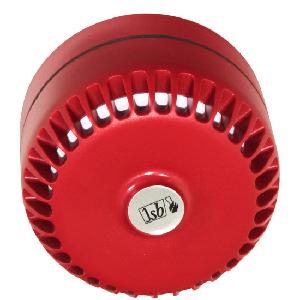

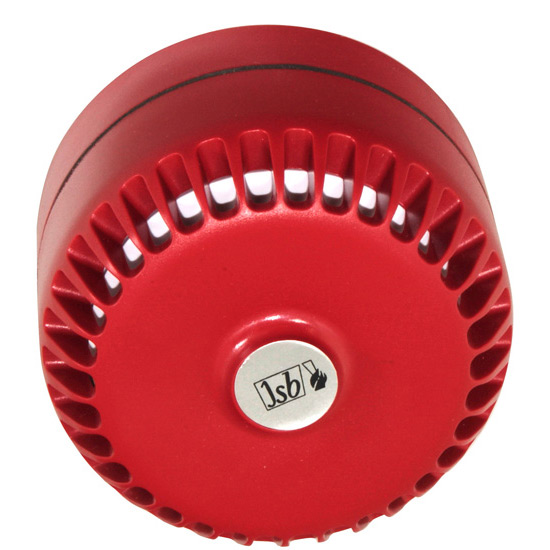

JSB 100dBA Electronic Sounder

JSB 100dBA Electronic Sounder



JSB 100dBA Firedex Low Profile Surface Electronic Sounder

different alarm tone selections are provided.
• Low profile design
• Pre drilled cable entries
• 32 selectable tones

Device Overview
• Supplied with low profile fixing base
• Sounder tone is controlled by DIP switch settings
• Separate volume control

Sound Output
105 dB(a) max (+/-2) @ 24V DC
Interface Options
Sounder operates from nominal 24V supply and can be connected to any suitably rated conventional sounder circuit.

Dimensions
Dia (mm) 93 x D (mm) 63
Installation Notes

• Low profile surface sounder is supplied with simple to install first fix mounting base
• Fixing and cable entry holes are pre-drilled
• Cable entry is from rear
• Connections are to main sounder body
