JSB smoke Detector Base FXN520

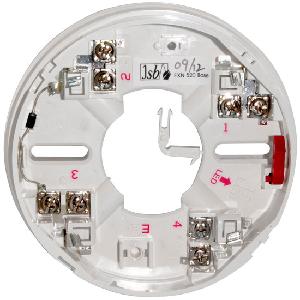

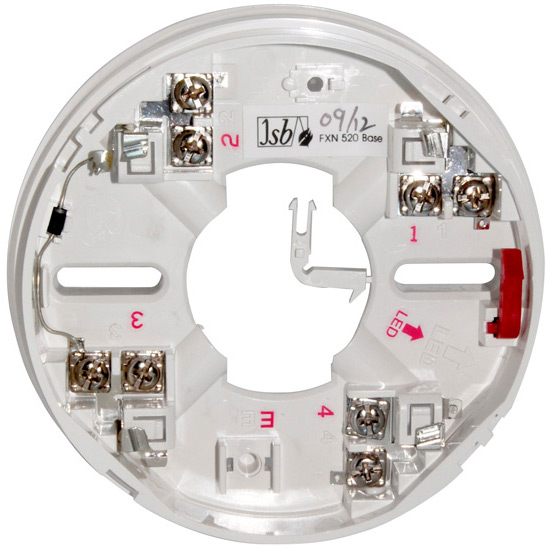

JSB FXN520 White Mounting Base For Conventional Detectors
Detector mounting bases are available which have been specifically designed to be compatible with JSB detectors and control panels. The bases have been designed for flexibility, simplicity and speed of installation.
• Separate loop in and loop out terminals
• Stand off fixing feature
• Accepts side entry surface cables
• Selectable detector locking feature
System Overview
• Bases incorporate purpose designed devices to provide fault warning if detector is removed whilst maintaining full zone wiring integrity
• Base has series Schottky diode
User Interface
Heavy duty terminals are provided for each connection, each terminal can accept 2 x 2.5mm cables. Separate loop in and loop out terminals are provided for each connection.
Interface Options
JSB conventional detectors and bases support the use of a remote LED.
Dimensions
Dia (mm) 104 x Depth (mm) 22
