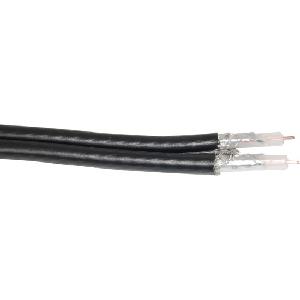

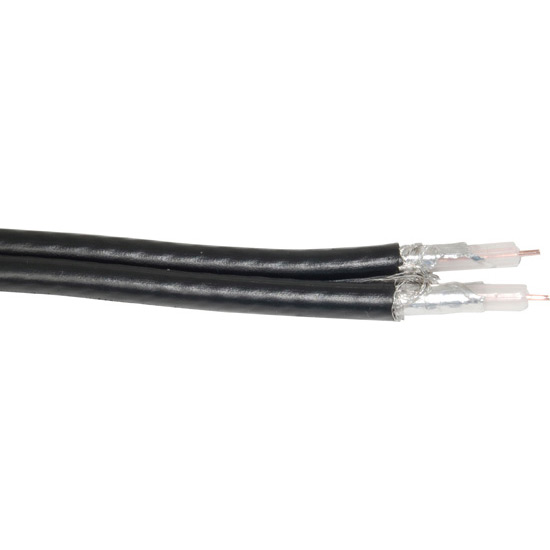

Twin Satellite/Coax Cable Black
Twin Satellite/Coax Cable Black for use with SKY or any PVR that requires two feeds
Black Semi-flexible. 1mm bare copper inner conductor. Copper screen. PVC sheath Suitable for Outdoor Use.
Impedance 75 coax cable
Designed for digital interconnection purposes
PVC jacket
Copper clad steel inner - 1.0mm
Dielectric semi airspaced PE - 4.6mm
Aluminium/PET shield, 100% coverage
Aluminium wire coverage 38%, 0.12mm
PVC jacket - 6.6mm
Technical Data
Impedance 75
Nominal capacitance 53pF/m
Screening efficiency 30-470MHz - dB>85
900-2150MHz - dB>85
Return loss 5-470MHz - dB>25
470-862MHz - dB>20
862-2150MHz - dB>20
Nominal Cable Diameter 6.60mm
